| No. | Parameter Name | Specification |
|---|---|---|

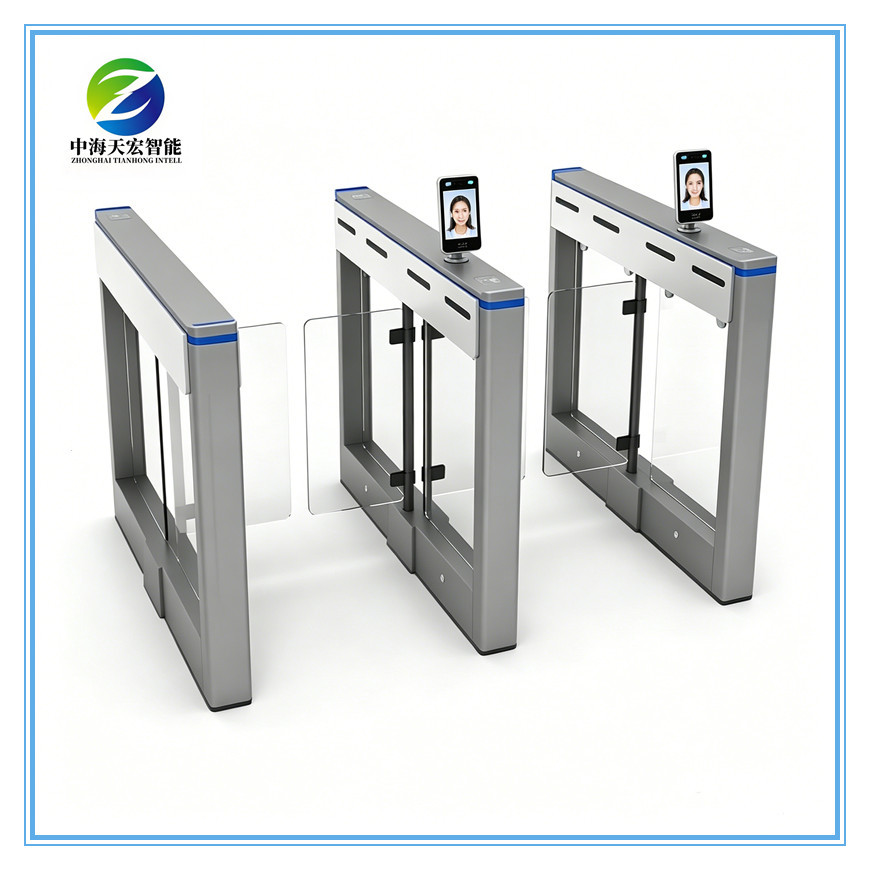

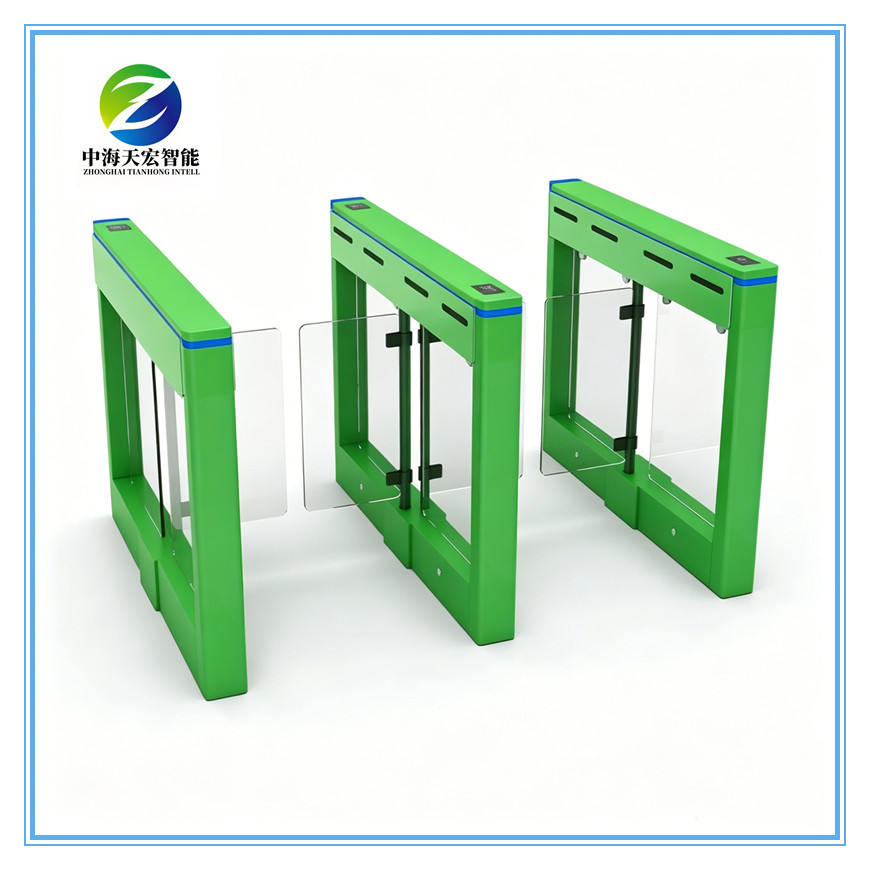

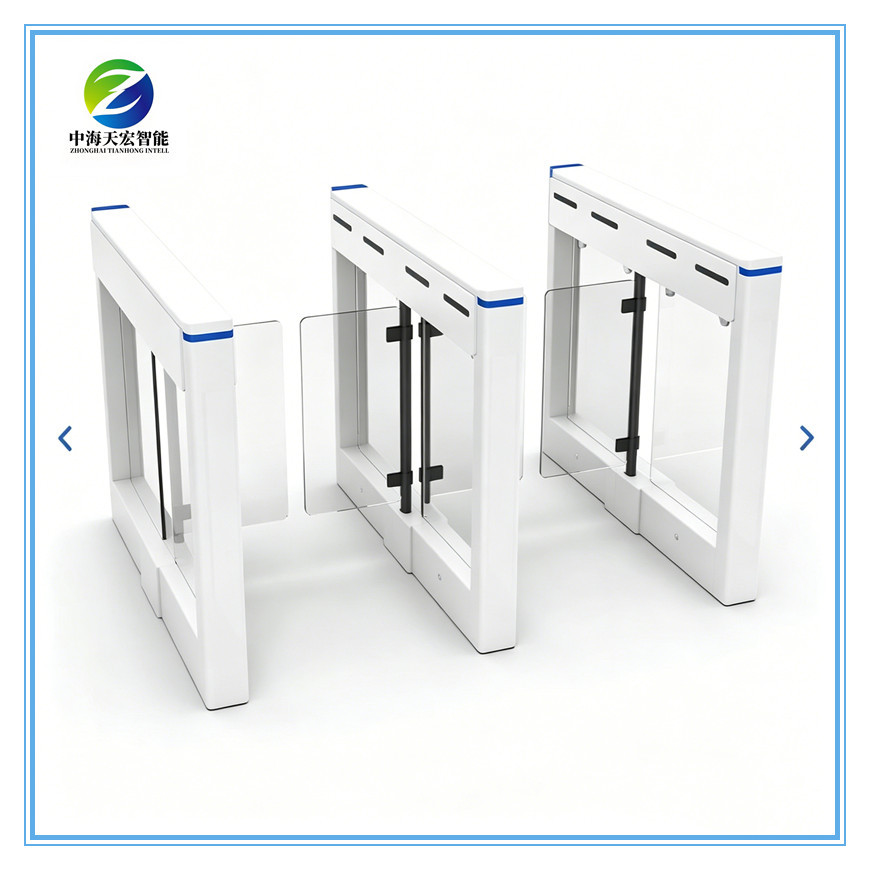

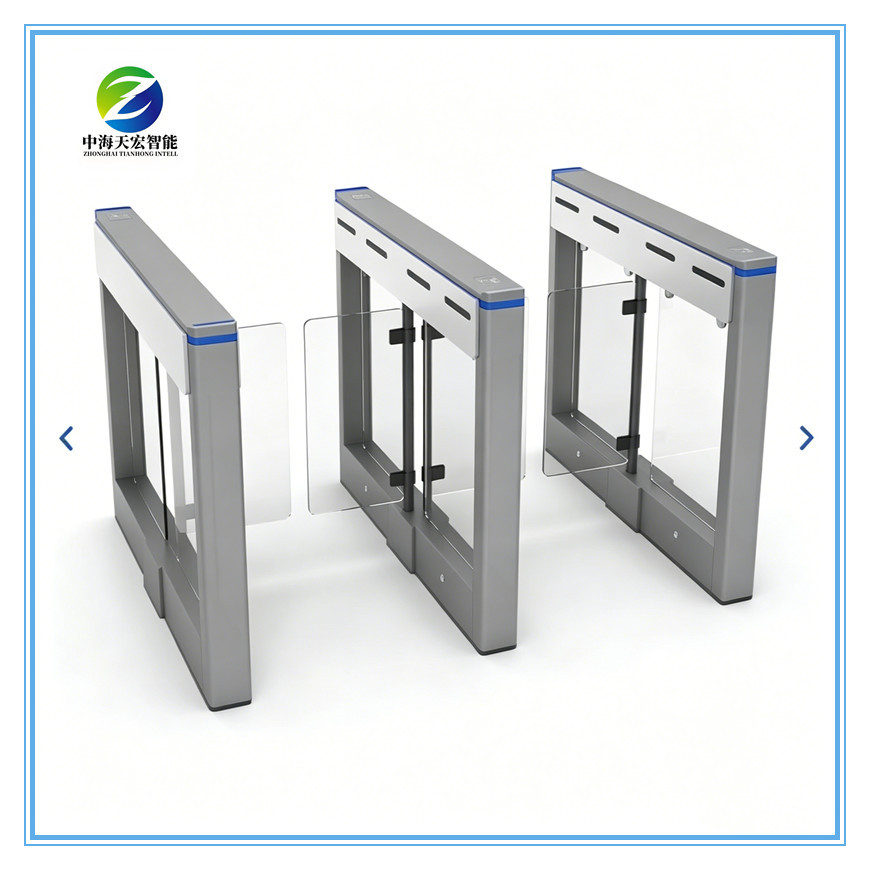

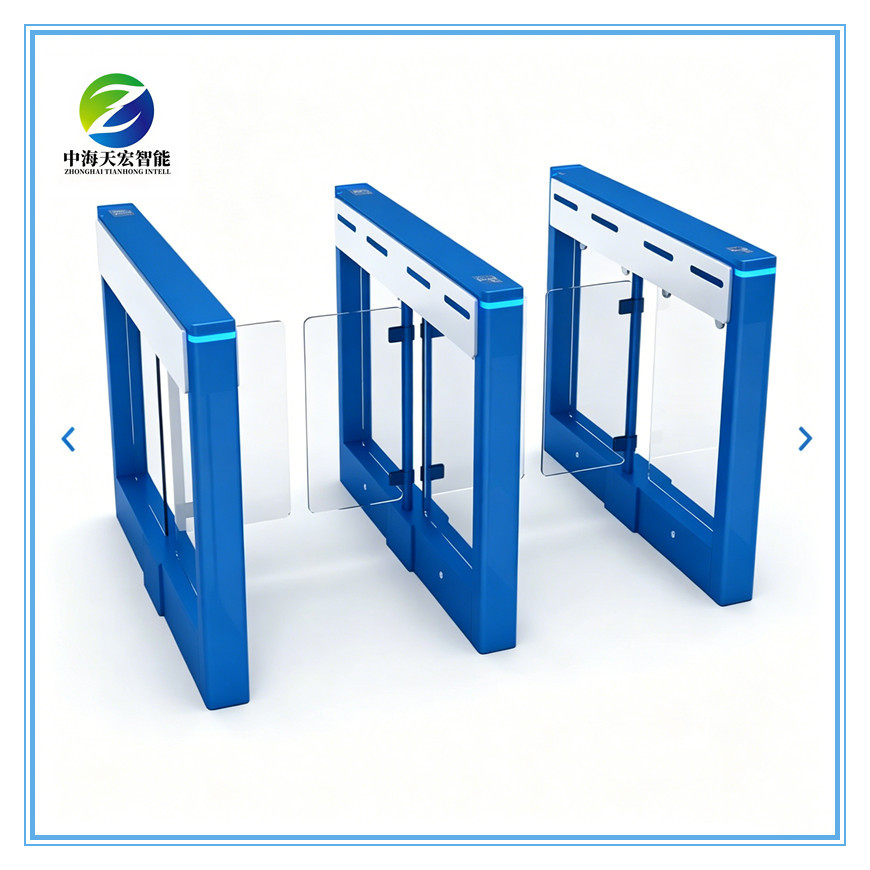

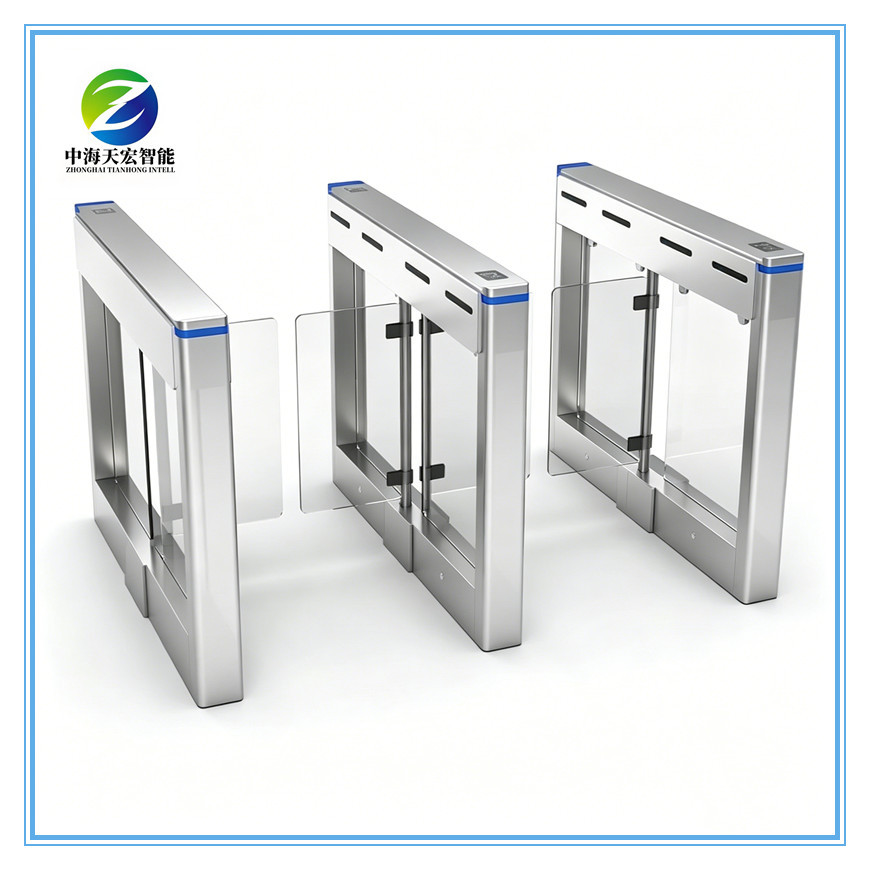

| 1 | Product Model | Advanced Access Control Swing Barrier Gate SBG388 |
| 2 | Power Supply | AC 220V/110V, 50/60Hz |
| 3 | Casework Material | SUS304 Stainless Steel (SUS316 for optional) |
| 4 | Operating Temperature | -28 °C ~ 80 °C |
| 5 | Operating Humidity | 5% ~ 85% RH |
| 6 | Protection Grade | IP54 Waterproof & Dustproof Standard |
| 7 | Passage Flow Rate | 25 - 48 Passages/Minute |
| 8 | Drive Mechanism | Semi-automatic Electromagnetic with Hydraulic Buffer (Full-automatic Brushless Motor for optional) |

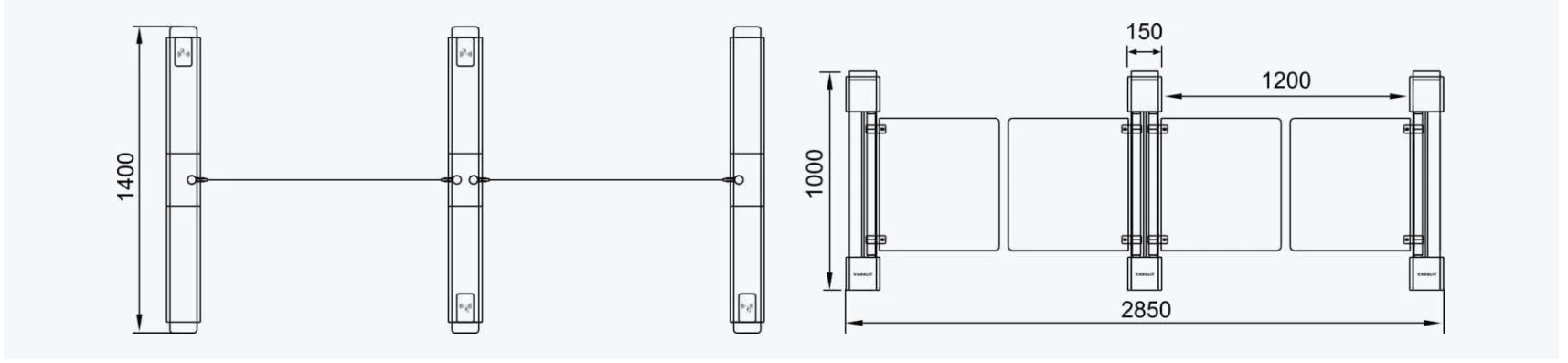

| 9 | Overall Dimension | 14001501000mm (LWH) |
| 10 | Net Weight | 45kgs |
| 11 | Mechanical Life (MCBF) | Up to 8 Million Cycles (Brushless Motor Version) |
| 12 | Certification & Warranty | CE & RoHS Certified, 2 Years Standard Warranty |
