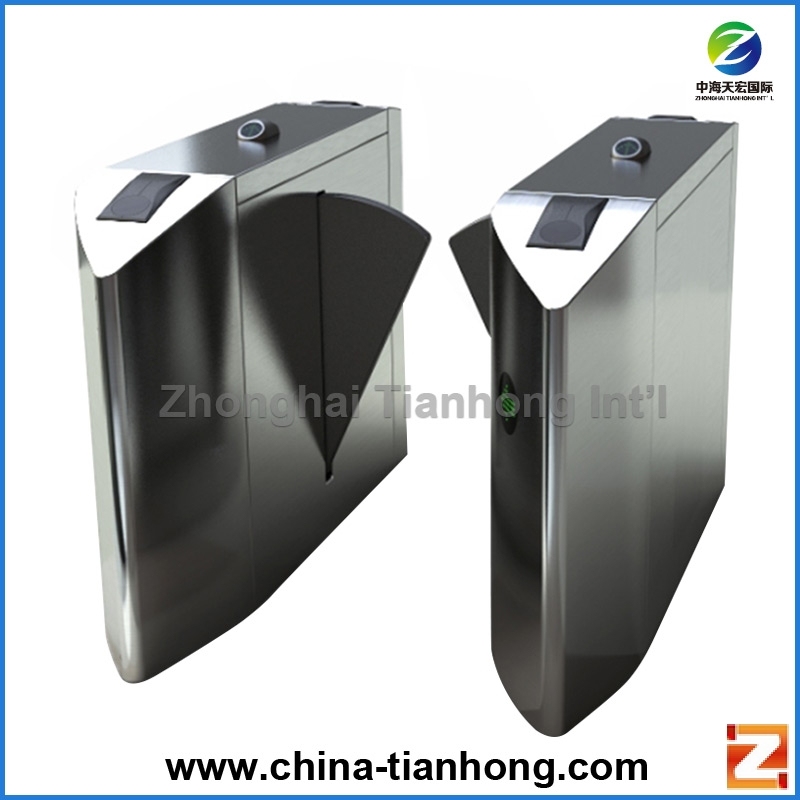

Optical Flap Barrier Turnstile TH-FGB NB1

Item No.: TH-FGB NB1
Flap Barrier Gate System is a fast acting entry control barrie
system; bi-directional, with flaps that open into its pedestal.
Its solid defence structure is built for high frequency usage and heavy traffic flow.
INQUIRY
Description

Flap barriers are designed to control pedestrian entering and exiting, adopts stainless steel #304, double brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use, easy to integrate with other read/write devices, and widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.


Technical Parameters



Contains

Mechanism,Housing,Driver  board,Power Supply

Housing Material

Stainless steel or  Cold-rolled steel plate

Drive Mode

Motor drive, 6 sets  Photoelectric sensor

Communication Interface

One RS232 interface, two  card reader signals(passive),one fire alarm interface

Status Indication

Allow passing through/  Forbidden

Power

1. Paused: ﹤50watt    2. Working state: ﹤150watt

Working Environment

Indoor,matching with rain  frame for outdoor use

Humidity

5%-90%

Noise

≤65dB

Lane Width

600mm

Net Weight

80KGS

Follwing Speed

35people/minute in Normal  close mode; 60people/minute in Normal open mode

Service Life

Three millions continuous  opening and closing of barrier panel

Access Modes

1. Locked  2.Remote control by computer  3. Authorized

Voltage

Input AC220V (adjustable)

Maintenance Port

2units

Dimension

1200L × 1040H × 280W(mm)

Working Environment

0℃-60℃

Working State

Single/ bi-directional
