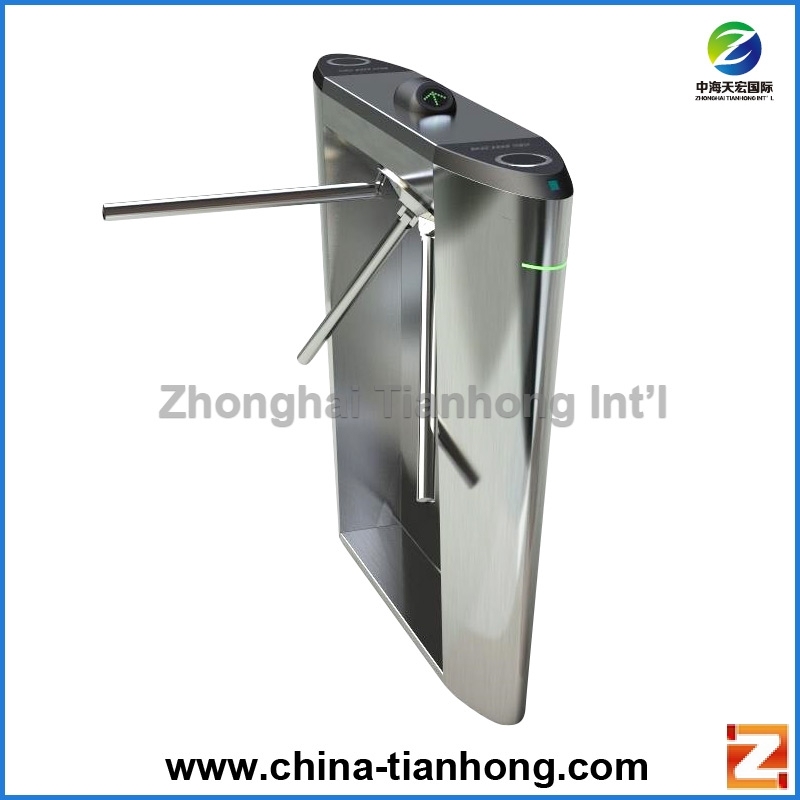

China Factory Price Tripod Turnstile
Tripod Turnstiles offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building, government offices, schools, scenic spots, clubs,universities etc. TT501 is an attractive tripod turnstile that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding.
TIANHONG Tripod turnstile can be combined with smart card, fingerprint, bar code, and other identification system equipment to form an intelligent access control system. We can provid all the customers both OEM & ODM services for all Tianhong Turnstile models.
For more information, please feel free to contact us.
| Technical Parameters: |
Mechanism, Housing, Drive board, power supply |
| Housing Material | stainless steel or with Cold-rolled steel plate |
| Drive Mode | DC electronic motor drive, Photoelectric sensor |
| Access Modes | Rotating 10 degree manually, then arms turned automatically |
| Working State | single or bi-directional, 6 modes |
| Input | Input AC220V (10% more or less), 50Hz (4% more or less) |
| Protection | When external force more than setting value, the tripod will be move |
| Communication Interface | one RS232 interface two Card reader signals (Passive) one Fire Alarm interface |
| Power Consumption Working State | ＜60 Watt |
| Service Life | Five millions continuous opening and closing of barrier panel |
| Following Speed | ＞15 people/ minute |
| Lane Width | 550-570mm |
| Status Indication | Allow passing through / Forbidden |
| Output | AC24V, DC12V, DC5V |
| Maintenance Port | 2units |
| Working Temperature | 0°C-60°C |
| Dimension | 1770L × 1040H × 300W (mm) |
| Protection Property | IP42, for indoor |
| Net Weight | 80KGS |
| Noise | ≤50dB |
| Humidity | 5%-90% |
