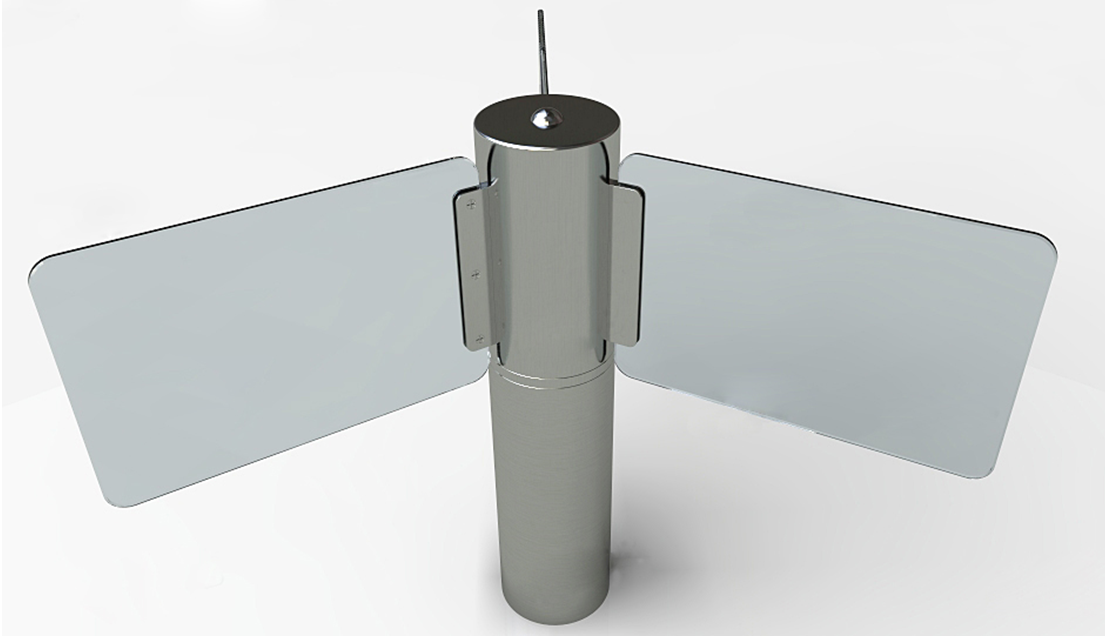

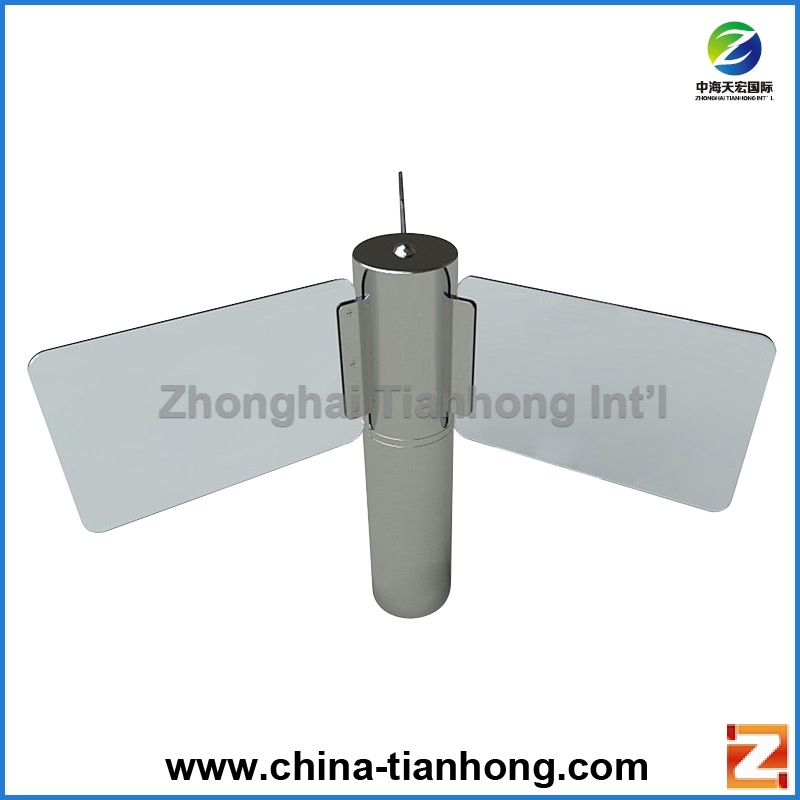

Unique Designed Triple Swing Barrier Gate TH-SBG206

The swing access turnstile gate from turnstile manufacturers Tianhong Turnstiles & Lockers is widely used for supermarket access control. The fence can be added on both sides to allow free access. It is min size, which can save space. It can also be used as an emergency exit.  Tianhong Turnstiles & Lockers offers the best quality Swing Gate at the cheapest price online. Professional turnstile manufacturer of Tiahong Turnstiles & Lockers offers the cheapest turnstile gates.

Main Advantages:


• In case of emergency, please cut off the power, Access turnstile will open automatically to allow free passage which is complying with fire safety requirements.
• The access turnstile is suitable for supermarket access control.
• The whole system runs smoothly, with low noise.
• Professional turnstile manufacturers Tianhong Turnstiles & Lockers.
• Alarm function, if there is an illegal intrusion and backward  intrusion, the gate will alarm and the door will lock.
• If it comes with a fence, the sensor can be added to realized free access. The middle sensors is to prevent pinch pedestrians.
• Anti-tailing function, one person can pass at one time. If someone tails after the front people, the gate will alarm
• Bi-directional access reduces the need for more gates. It is accommodated for wheel Chair, shopping stroller increases the passing efficiency. It can also work as a single direction, which is widely seen in the Supermarket for only entrance.
• Automatic reset function. If the people did not pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close automatically.
• It is a stainless steel arm. The lane width can reach 1600mm which can be used for bicycle or motorcycle access.

Technical Parameters

1. Interface Parameter: one Rs232 interface, two card reader signals (Passive), one fire alarm interface
2. Configuration: Mechanism, Housing, control board and Power supply
3. Structure: Stainless steel column-shape
4. Operation Direction: Single/bi-direction
5. Drive Mode: DC electric motor
6. Anti-reverse: Have anti-reverse function in order to ensure one card for one person
7. Power:AC220V±10% 50Hz±4%
8. Output:AC24V、DC12V、DC5V
9. Power Consumption: Static state: single mechanism 20W; dynamic state: single mechanism 60W.
10. Working Environment: Indoor, Outdoor (with rain frame)
11. Temperature:-10 ℃ - 60 ℃
12. Humidity:5％~90％
13. Speed:＞15 people/min
14. Noise: ＜50DB
15. Lane Width:700mm（Max）
16. Service Life: More than 300 million constantly open and close
17. Dimension: Column height: 1000mm diameter: 220 mm
18. Baffle Dimension:600mm（Max） x 370mm
19. Net Weight:60kg（without control device）
20. IP Protection: IP42
